Expansion Joints for Piping and Ducting Systems
VTM supplies expansion joints for piping and ducting systems where thermal movement, vibration, equipment motion or installation tolerance must be accommodated. Each unit is selected or engineered according to the operating conditions, movement requirements and project specification.
Metal Expansion Joints
Available in single, universal, tied, hinged, gimbal and pressure-balanced configurations, including circular and rectangular designs.

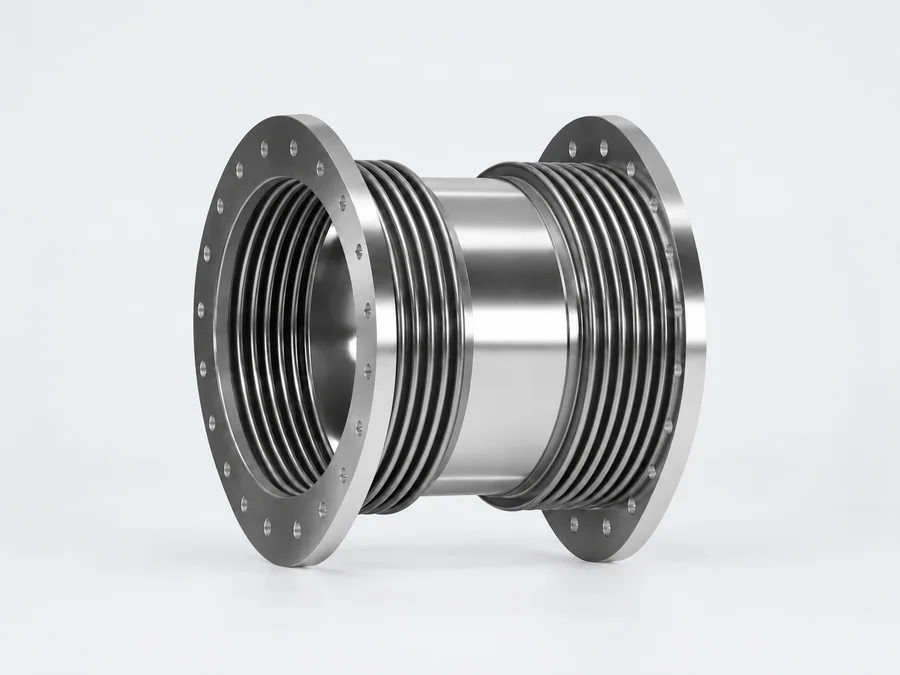

Universal Expansion Joint

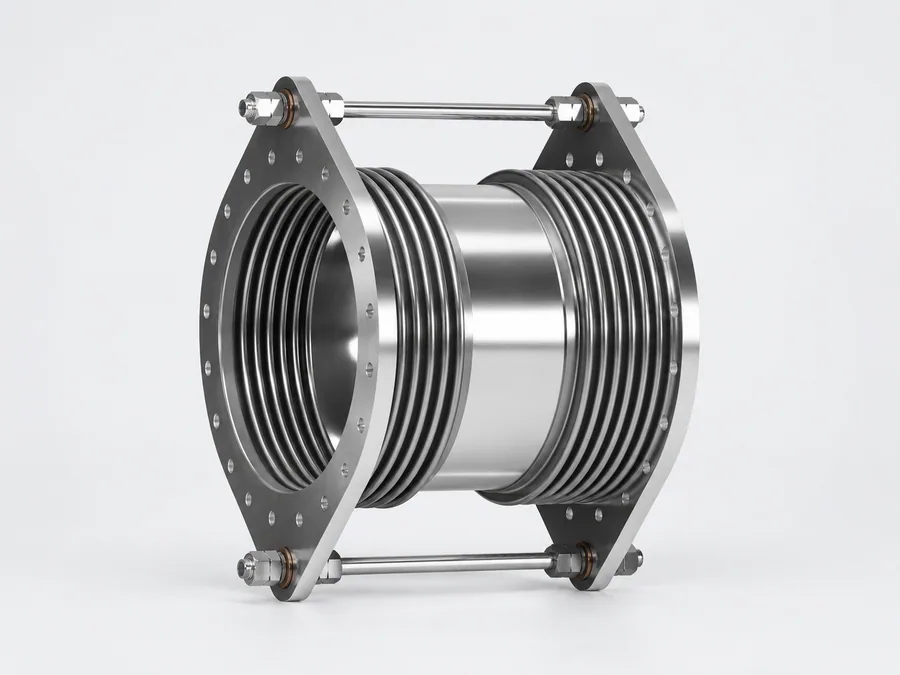

Universal Tied Expansion Joint

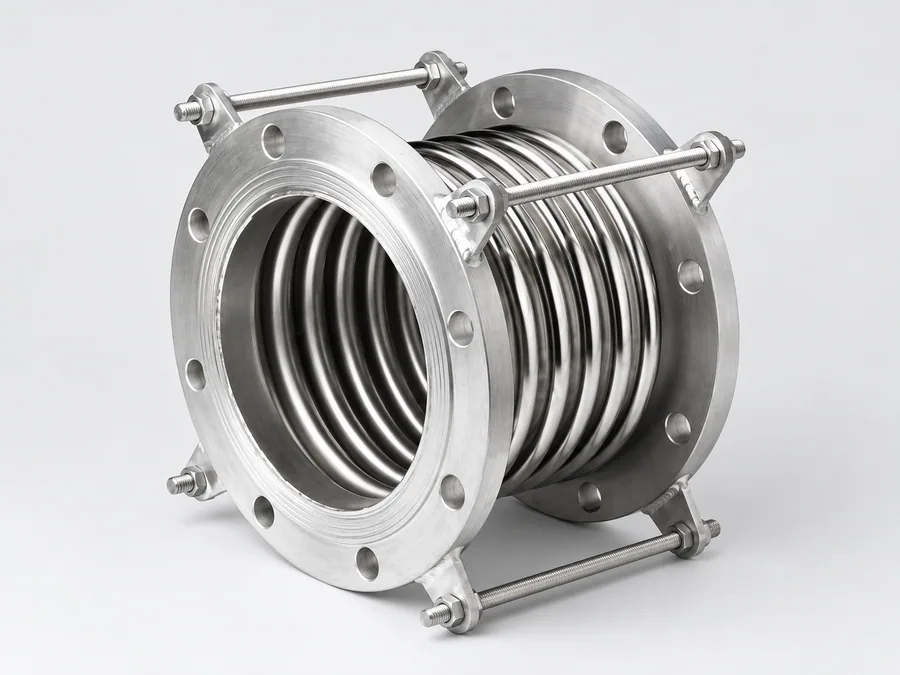

Single Tied Expansion Joint

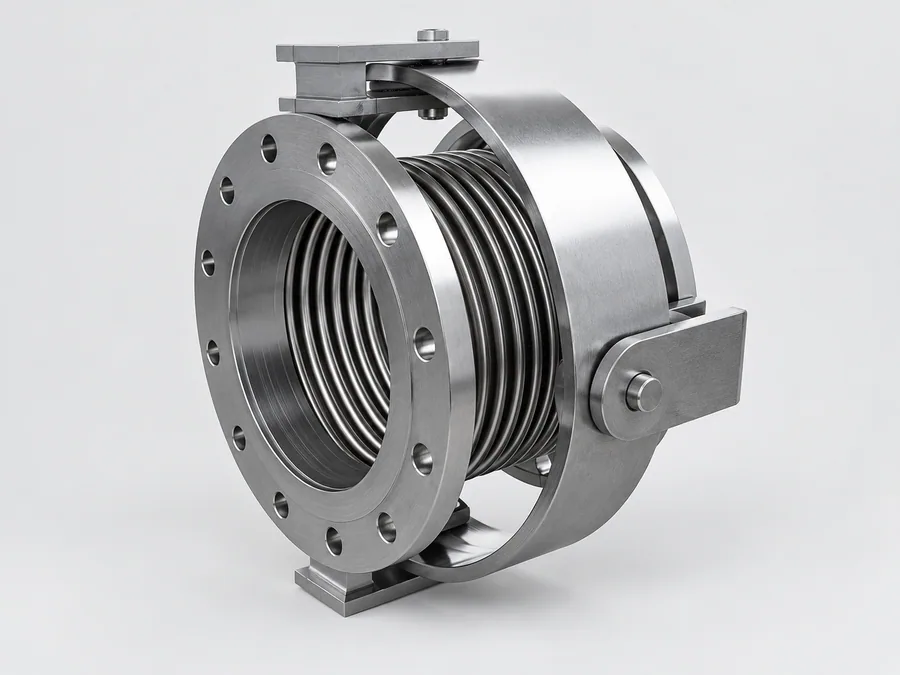

Hinged Expansion Joint

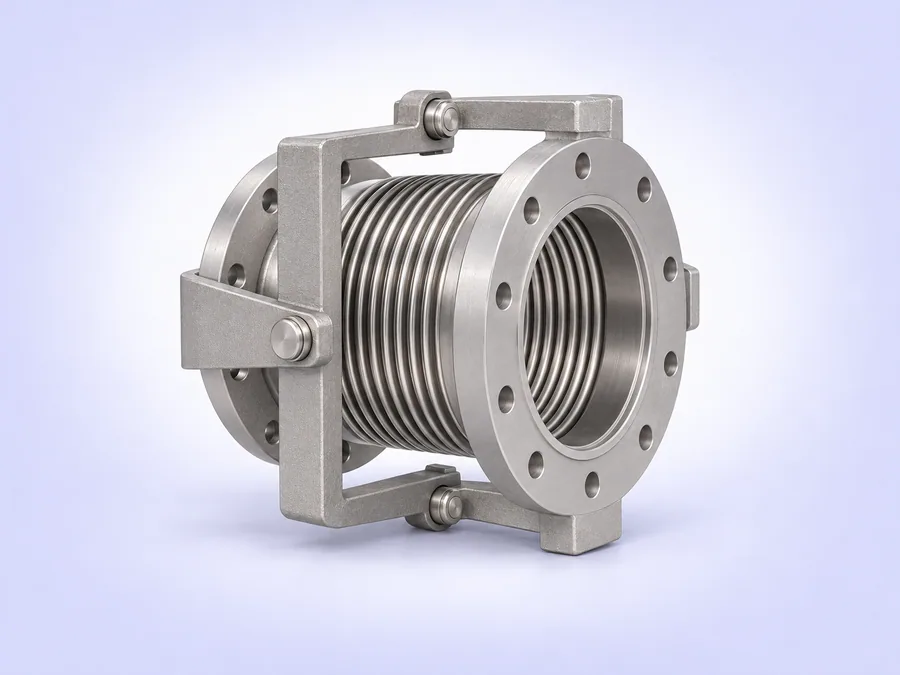

Gimbal Expansion Joint

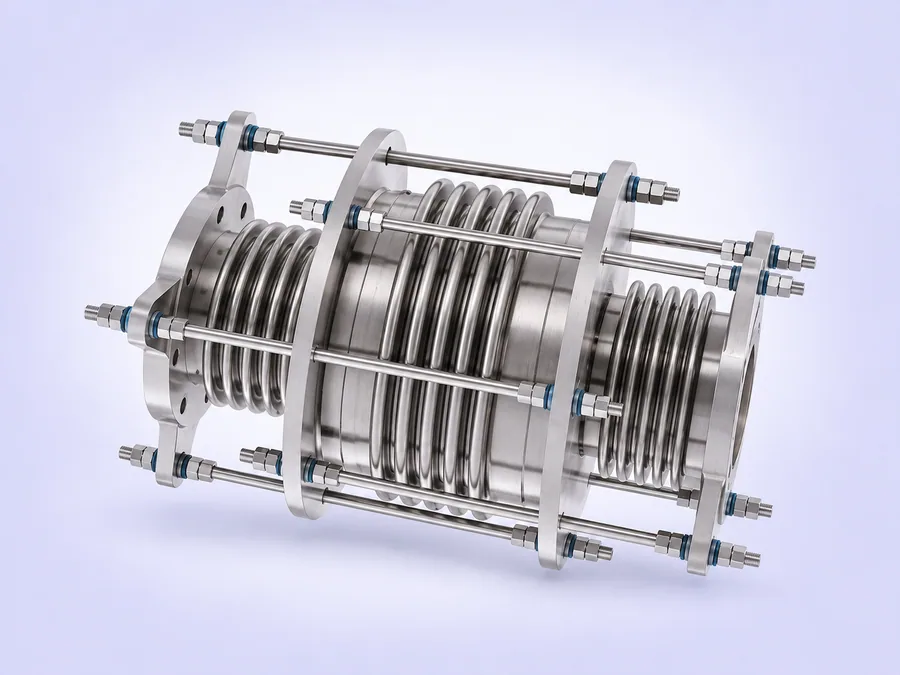

Pressure Balanced Expansion Joint

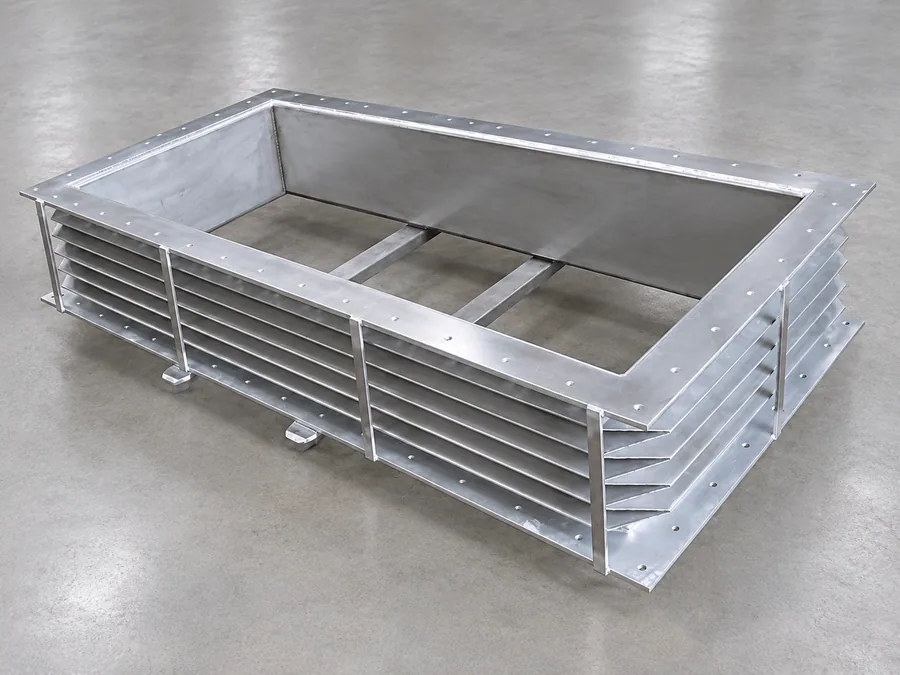

Rectangular Metal Expansion Joint
Fabric Expansion Joints
Single-layer or composite multi-layer flexible elements for ducting systems and selected gas-service applications.

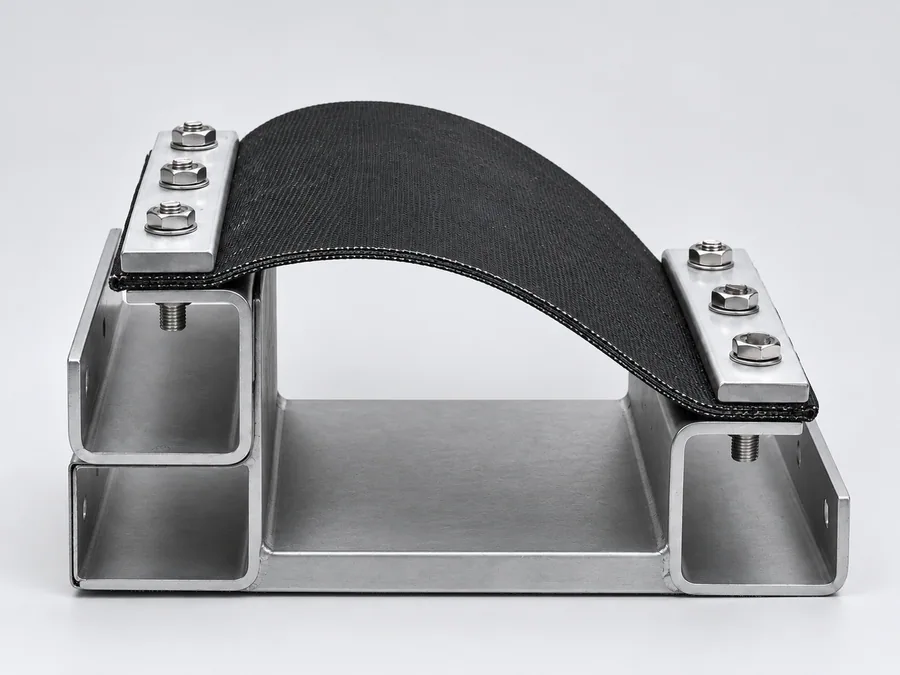

Single-Layer Fabric Expansion Joint

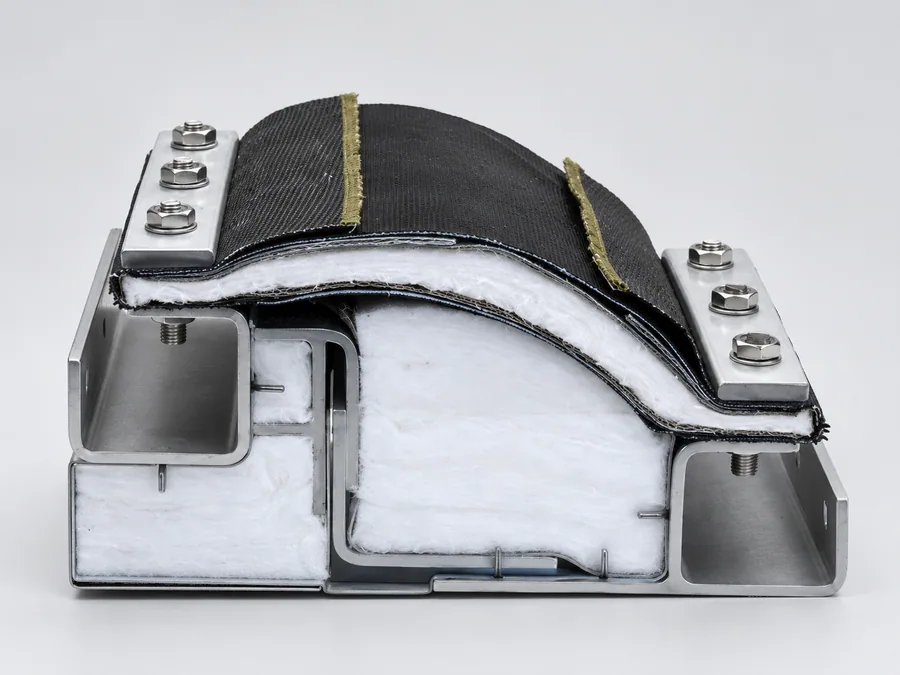

Composite Multi-Layer Expansion Joint

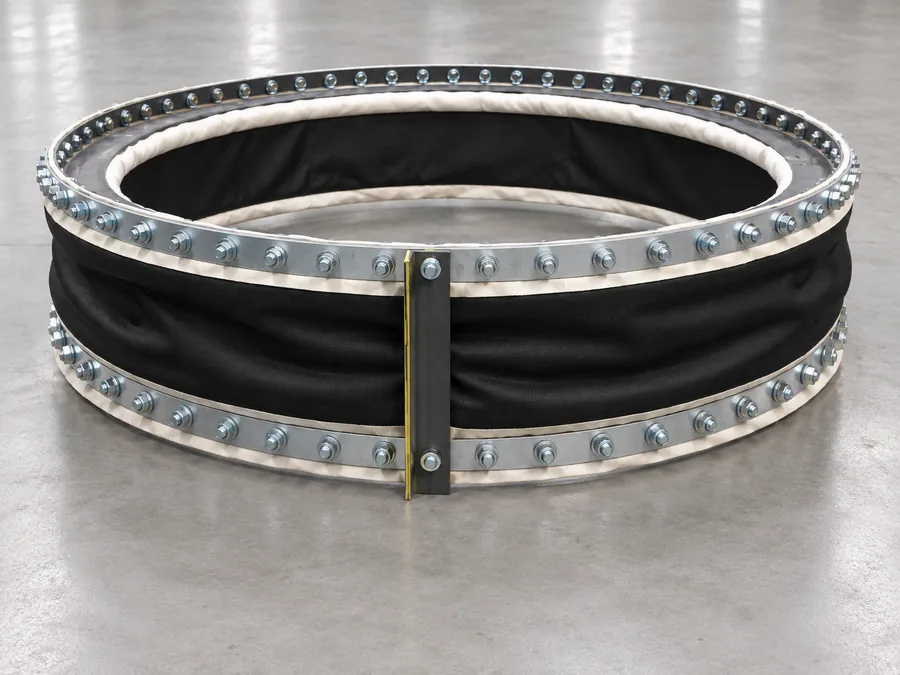

Circular Fabric Expansion Joint

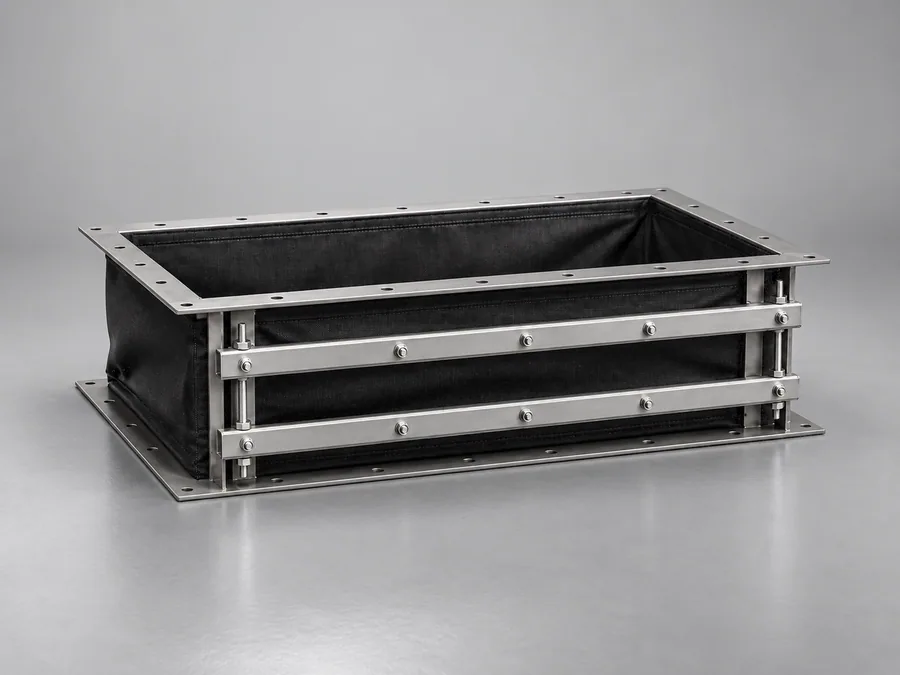

Rectangular Fabric Expansion Joint
Rubber Expansion Joints
Moulded or hand-built units for vibration isolation, noise reduction and movement absorption in liquid-service piping.

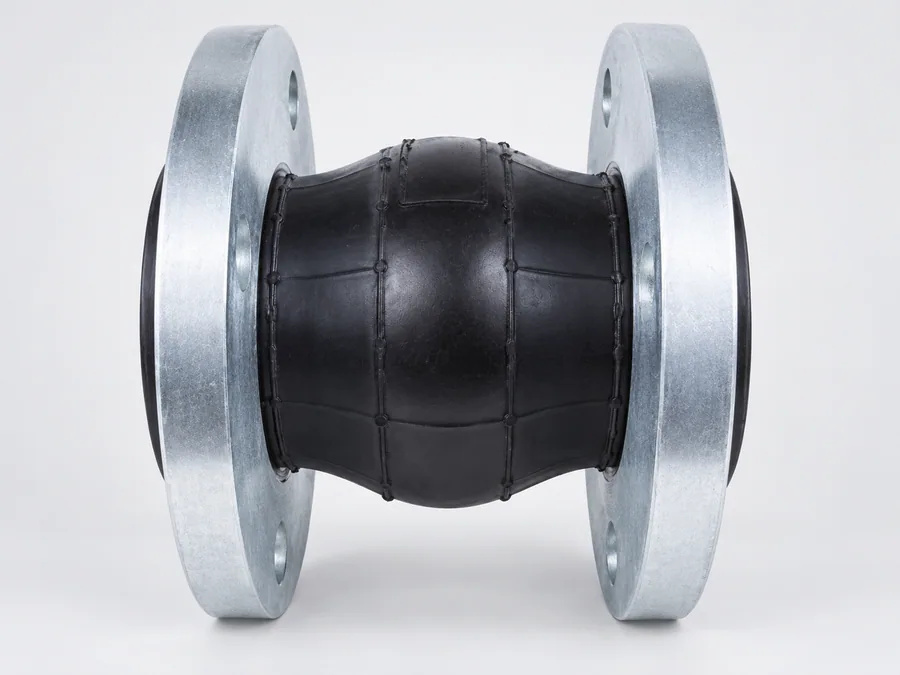

Moulded Single Arch

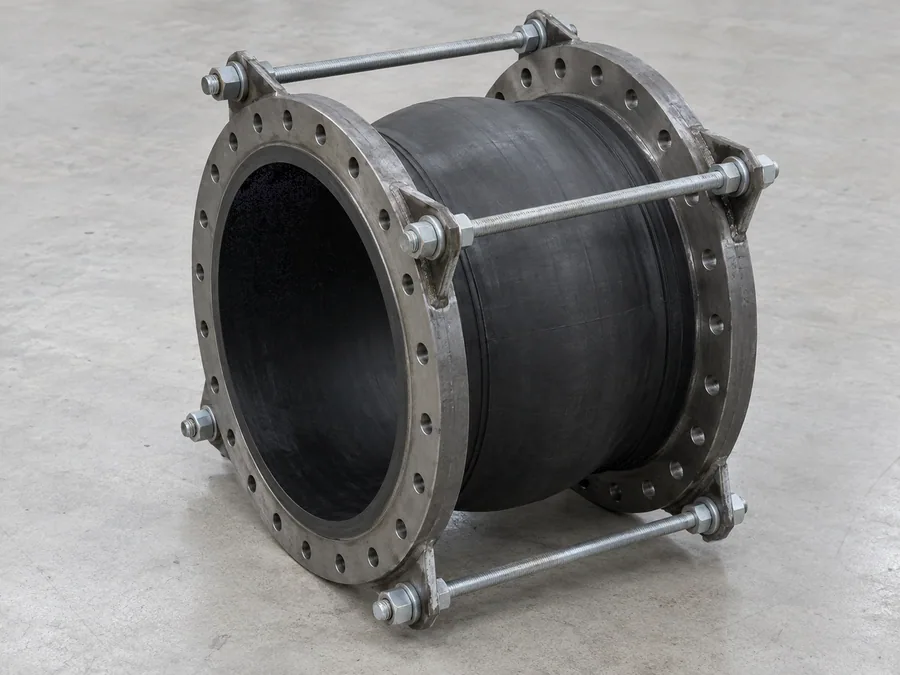

Hand-Built Large Diameter

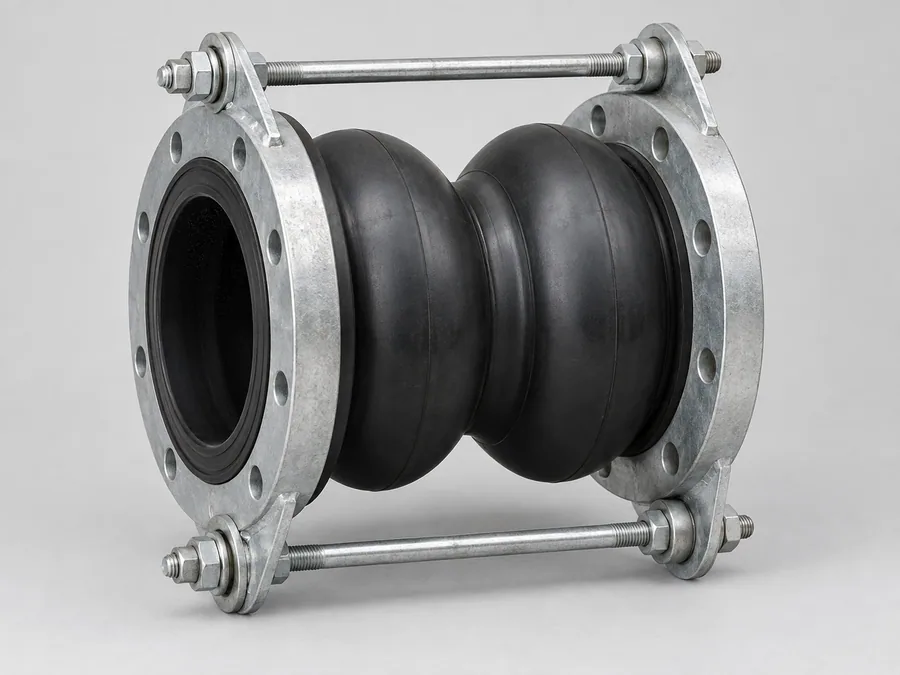

Multiple Arch with Control Units
Materials & design options
Metal materials may include stainless steel, Incoloy, Inconel, Hastelloy, titanium and Monel, subject to design and availability.
Rubber body options may include EPDM, neoprene and butyl with nylon or Kevlar reinforcement, selected for the service conditions.
Flanges, liners, tie rods and covers can be specified to the project requirement, with design and documentation aligned to applicable EJMA, ASME, FSA and manufacturer requirements where relevant.
Information required for selection
Providing the available details helps our team review your requirement efficiently.
- 01
Line or duct size, overall length and end connection.
- 02
Operating and design pressure, temperature, process medium and external environment.
- 03
Required axial, lateral and angular movements.
- 04
Material, testing, inspection and documentation requirements.
Discuss your expansion joints requirement
Send the relevant specifications and project details for technical and commercial review.
